Description
Australian Made

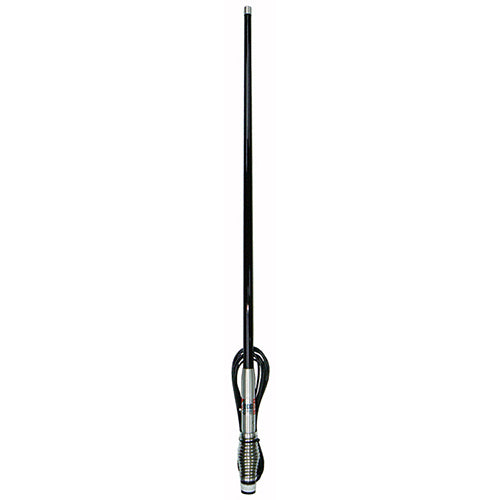

UHF CB Radio detachable antenna, black - 477MHz, 5m cable, UHF Male, 100W, 6.6dBi - 1.2m
Product code: ZN3-77-11B
Product Description
The ZN3-77-11B detachable UHF CB Radio antenna offers a good balance between size and gain which is well suited for either hilly or flat country. The detachable design allows for removal of the antenna when damage or vandalism may occur or when not in use. Removal is as easy as releasing the tension grub screw and unscrewing the antenna top. Ensure to install the PVC cap on the exposed spring base connector to stop dirt/water ingression.
PDF documents for download:
Brochure [ZN3 77 11 Heavy Duty]
Installation Guide [ZN3-77-11 Installation Guide]
Product Specifications
| Weight | 1.42Kg |
|---|---|
| Dimensions | H = 1.2m |
| Construction | Black fibreglass radome, aluminium ferrule, stainless steel spring and cable base |
| HEPlane | H Plane: 360° omnidirectional |
| Impedance | 50 Ohms |
| Polarisation | Vertical |
| Connector | FME Female fitted to cable for ease of installation FME to |
| Frequency | UHF CB radio 477MHz |
| Tuning | Factory @ 1.5:1 VSWR |
| Gain | 6.6 dBi |
| Max power | 100 Watts |
