Description
Australian Made

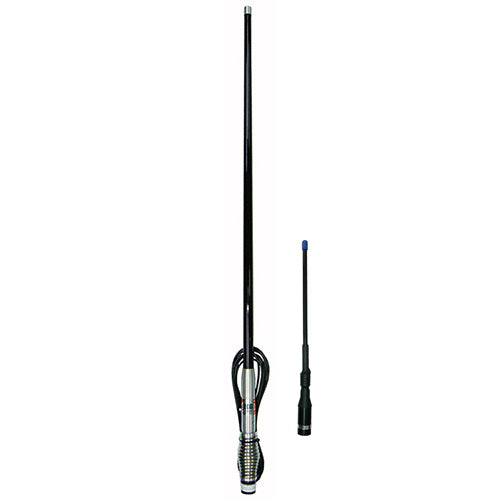

We have put together this Heavy Duty Town & Country Pack. A 1.2m long 6.6db gain antenna for use on flat ground, desert etc and a 400mm long 2.1db gain antenna for use in the hilly terrain.
---------------------------
UHF CB Radio detachable antenna, black - 477MHz, 5m cable, UHF Male, 100W, 6.6dBi - 1.2m
&
UHF CB Radio 477MHz detachable whip top, UHF male PL259, 100W, 2.1dBi - 400mm
--------------------------------------
Product code: ZN3-77-11B
Product Description
The ZN3-77-11B detachable UHF CB Radio antenna offers a good balance between size and gain which is well suited for either hilly or flat country. The detachable design allows for removal of the antenna when damage or vandalism may occur or when not in use. Removal is as easy as releasing the tension grub screw and unscrewing the antenna top. Ensure to install the PVC cap on the exposed spring base connector to stop dirt/water ingression.
PDF documents for download:
Brochure [ZN3 77 11 Heavy Duty]
Installation Guide [ZN3-77-11 Installation Guide]
Product Specifications
| Weight | 1.42Kg |
|---|---|
| Dimensions | H = 1.2m |
| Construction | Black fibreglass radome, aluminium ferrule, stainless steel spring and cable base |
| HEPlane | H Plane: 360° omnidirectional |
| Impedance | 50 Ohms |
| Polarisation | Vertical |
| Connector | FME Female fitted to cable for ease of installation FME to |
| Frequency | UHF CB radio 477MHz |
| Tuning | Factory @ 1.5:1 VSWR |
| Gain | 6.6 dBi |
| Max power | 100 Watts |
UHF CB Radio 477MHz detachable whip top, UHF male PL259, 100W, 2.1dBi - 400mm
Product code: ZN3-77-04-TPM
Product Description
The ZN3-77-04-TPM is an ideal replacement for owners of our larger, higher gain UHF CB series of antennas. In situations where tall antennas might be subject to damage or high gain is not necessary the ZN3-77-04-TPM is the ideal solution. The ZN3-77-04-TPM can be attached onto any existing ZN3-77 spring base or as a replacement top for the ZN3-77-04-AB.
PDF documents for download:
Brochure [ZN3 77 04 TP Highly Flexible Uhf Cb Antenna Top]
Installation Guide [ZN3-77-04-TP Top Installation Guide]
Product Specifications
| Weight | 200grams |
|---|---|
| Dimensions | Height: 400mm |
| Construction | Black flexible radome and delrin mount ferrule |
| HEPlane | H Plane: 360° omnidirectional |
| Impedance | 50 Ohms |
| Polarisation | Vertical |
| Connector | UHF Male PL259 in mount ferrule |
| Frequency | UHF CB radio 477MHz |
| Bandwidth | 467.425 - 477.4125MHz all 40 or 80 channels, covers 470-490M |
| Tuning | Factory at 1.5:1 VSWR |
| Gain | 2.1 dBi |
| Max power | 100 Watts |
