Australian Made

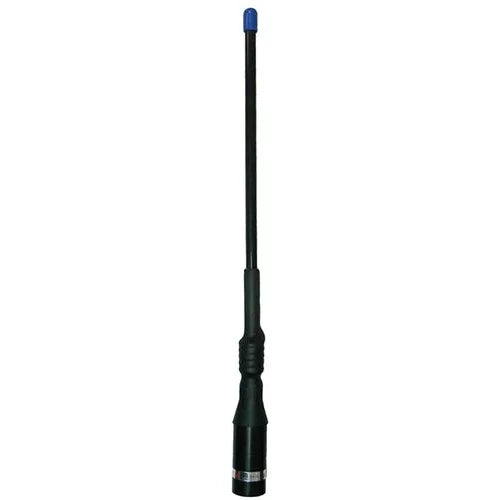

UHF CB Radio 477MHz detachable whip top, UHF male PL259, 100W, 2.1dBi - 400mm
Product code: ZN3-77-04-TPM
Please Note, this will only suit ZCG Base.
Product Description
The ZN3-77-04-TPM is an ideal replacement for owners of our larger, higher gain UHF CB series of antennas. In situations where tall antennas might be subject to damage or high gain is not necessary the ZN3-77-04-TPM is the ideal solution. The ZN3-77-04-TPM can be attached onto any existing ZN3-77 spring base or as a replacement top for the ZN3-77-04-AB.
PDF documents for download:
Brochure [ZN3 77 04 TP Highly Flexible Uhf Cb Antenna Top]
Installation Guide [ZN3-77-04-TP Top Installation Guide]
Product Specifications
| Weight | 200grams |
|---|---|
| Dimensions | Height: 400mm |
| Construction | Black flexible radome and delrin mount ferrule |
| HEPlane | H Plane: 360° omnidirectional |
| Impedance | 50 Ohms |
| Polarisation | Vertical |
| Connector | UHF Male PL259 in mount ferrule |
| Frequency | UHF CB radio 477MHz |
| Bandwidth | 467.425 - 477.4125MHz all 40 or 80 channels, covers 470-490M |
| Tuning | Factory at 1.5:1 VSWR |
| Gain | 2.1 dBi |
| Max power | 100 Watts |
