Description
Australian Made
UHF CB radio rugged detachable antenna, black, 477 MHz, 5m cable, UHF male PL259, 100W, 2.1 dBi - 650mm
Product code: ZN3-77-06BLKR
Product Description
The ZN3-77-06BLKR all-black detachable UHF CB Radio 477 MHz vehicle antenna offers a good balance between size and gain and is the shortest and ruggedised design model ZCG offers. The stubby design of the ZN3-77-06BLKR rugged 477 MHz UHF CB vehicle antenna reduces possible visual obstruction whilst driving, whilst maintaining the aggressive and rugged aesthetic of your vehicle.
SPECIFICATIONS
FREQUENCY
477 MHz - UHF CB radio
BANDWIDTH
476.4125 - 477.4125 MHz - all 40/80 channels
GAIN
2.1 dBi - suits hilly terrain or CBD locations
TUNING
Factory at better than 1.5:1 VSWR
IMPEDANCE
50 Ohms - nominal
H PLANE BEAMWIDTH
360° omnidirectional ± 0.5 dBd
MAXIMUM POWER
100 Watts
POLARISATION
Vertical
CONSTRUCTION

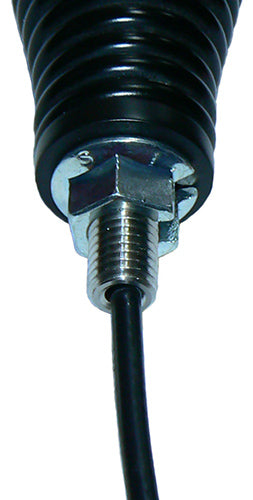

Rugged black fibreglass radome, black finish HD aluminium ferrule, heavy-duty black finish stainless steel spring cable base
CONNECTOR

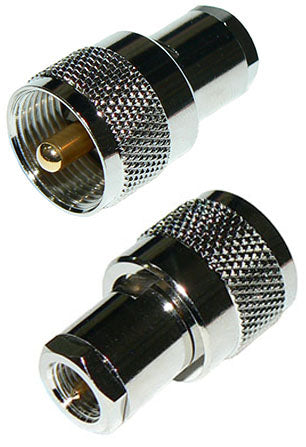

FME female connector fitted to cable for ease of installation. FME male to UHF male adaptor supplied for cable to radio connection
DIMENSIONS
Height: 650mm including spring base, Mount hole requirements: 16mm, External cable: 5.0m
WEIGHT - KG
1.01
