Description
Australian Made

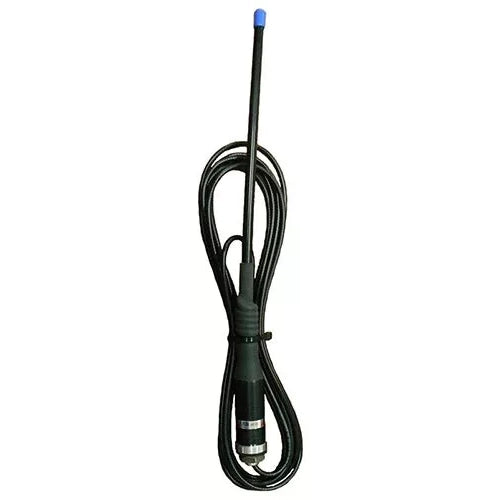

Ground independent detachable UHF CB 477 MHz flexible whip, 100W, UHF male PL259, 4.7m cable, 2.1 dBi - 400mm
Product code: ZN3-77-04-AB
The ZN3-77-04-AB is suitable for requirements where a larger, higher gain UHF CB antenna would vulnerable to damage or where high gain is not necessary, the ZN3-77-04 series are the perfect substitute for UHF communications at the CB radio frequency 477MHz. The ZN3-77-04-AB top can be attached onto any existing ZN3-77 series spring base as a replacement.
SPECIFICATIONS
FREQUENCY
477 MHz - UHF CB radio
BANDWIDTH
476.4125 - 477.4125 MHz - all 40/80 channels also works within 470-490MHz
GAIN
2.1 dBi - suits hilly terrain or CBD locations
TUNING
Factory at 1.5:1 VSWR
IMPEDANCE
50 Ohms
H PLANE BEAMWIDTH
360° omnidirectional ± 0.5 dBd
MAXIMUM POWER
100 Watts
POLARISATION
Vertical
CONSTRUCTION
Black flexible PVC radome, delrin ferrule with embedded UHF male connector, mount base with UHF female connector and 4.7m RG58 low loss cable
CONNECTOR
UHF male PL259 connector supplied, not fitted
DIMENSIONS
Height: 400mm, Mount hole requirements: 16mm, External cable: 4.7m
WEIGHT - KG
0.5
