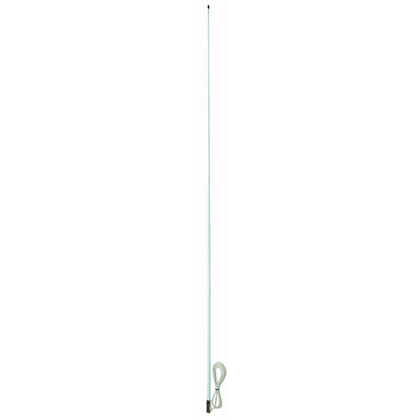

ZCG ZM24-VHF Marine VHF deck mount antenna - 156-162MHz, UHF male connector, 50W, 5.1 dBi - 2.4m
The ZM24-VHF marine VHF communications deck mount antenna comes standard at 2.4m tall with 4.5 metres of cable and a UHF male connector supplied. With 5.1dBi gain and a power rating of 50 Watts the ZM24-VHF is the ideal marine VHF communications antenna. The ZM24-VHF requires a MM1 white nylon fold-down base or MM2 stainless steel fold-down base (Not included with the antenna).
-
Construction- White fibreglass radome and chrome mount ferrule - Frequency Range - VHF Marine 156-162MHz
- Bandwidth - Full band
- VSWR -
- Tuning - Factory
- Gain - 5.1 dBi
- Maximum Power - 50 Watts
- Impedance - 50 Ohms
- Polarisation - Vertical
- H Plane - 360° omnidirectional
- Cable - 4.5 metres RG58 low loss (side exit from ferrule)
- Connector - UHF male solder connector (supplied)
- Height - 2.4 metres
- Weight- 1.1Kg
- Mounting Accessories - Choose either plastic or stainless steel fold down base when ordering (not included)
