Description
Australian Made

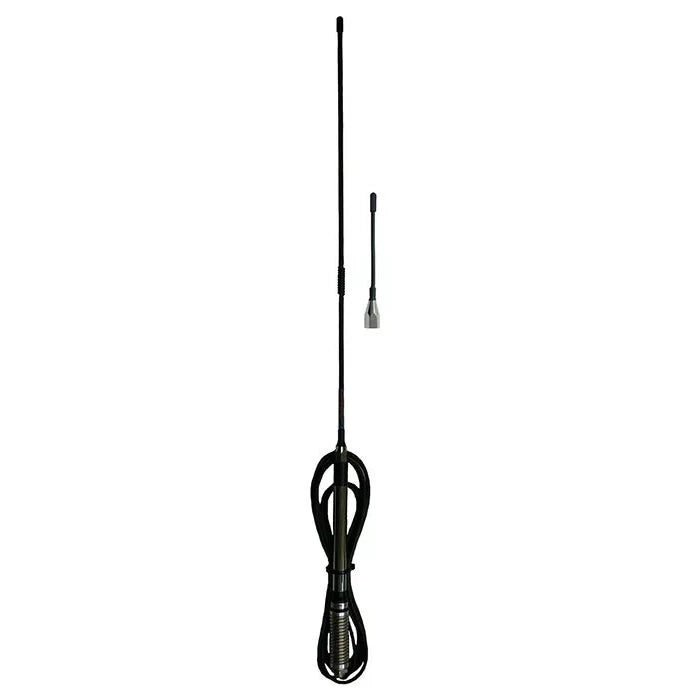

Ground independent UHF CB elevated feed dual whip antenna - 477MHz, FME-UHF male adaptor, 50W, parallel spring, 6.6 or 2 dBi whip - 900mm
Product code: ZN4-77-06S-TCP
Product Description
The ZN4-77-06S-TCP ground independent UHF CB antenna comes with a 6.6dBi and 2dBi whip for use either in urban or country locations where gain requirements differ. Both whips are easily detachable by un-screwing off the 5/16" thread. Mounted a top the robust parallel spring the ZN4-77-06S-TCP is suited for all extreme conditions.
Product Specifications
| Weight | Small whip attached: 426 Grams Large whip attached: 500gram |
|---|---|
| Dimensions | H = 900mm or 370mm |
| Construction | Black heatshrunk whips, delrin and chrome elevated feed, parallel spring and 4.7 metres RG58L/L |
| Impedance | 50 Ohms |
| Polarisation | Vertical |
| Connector | FME Female to cable FME Male to UHF Male PL259 Adaptor supp |
| Frequency | UHF CB Radio 477MHz |
| Tuning | Factory @1.5:1 VSWR |
| Gain | Small Whip: 2.1 dBi Large Whip: 6.6 dBi |
| Max power | 25 Watts |
