The perfect addition to any off-grid system, whether for a van or a cabin, the Renogy 3000W Pure Sine Wave Power Inverter acts as a DC to AC converter that allows you to power your household appliances. Unlike modified sine wave inverters, this 3000W inverter is a pure sine wave, capable of producing cleaner, smoother, and more reliable electricity to operate tools, fans, lights, and other electronics without interference. Many off-grid systems require a 12V solar inverter to power everyday electronics and this one includes multiple protections to help things run smoothly and safely.
The AC priority switch function enables the inverter automatically switch from the battery (DC) to the mains (AC) and vice-vercer whenever the utility company takes/loses power!
Key Features
Safe- Electronic overload protection with automatic shutdown.
- Built-in internal backup DC fuse provides added safety.
- Low battery voltage protection with automatic shutdown.
- Over temperature protection with automatic shutdown.
- Output short circut protection.
Minimum 12V Lithium Battery Bank Sizing
The following are the minimum battery quantities to operate Renogy power inverters. This is ONLY for 12V applications.
| Battery Bank Qty/ Inverter Size | 50Ah | 100Ah | 170Ah |
|---|---|---|---|
| 1000W | 2 | 1 | 1 |
| 2000W | 4 | 2 | 2 |
| 3000W | 6 | 3 | 2 |
Package Includes
|

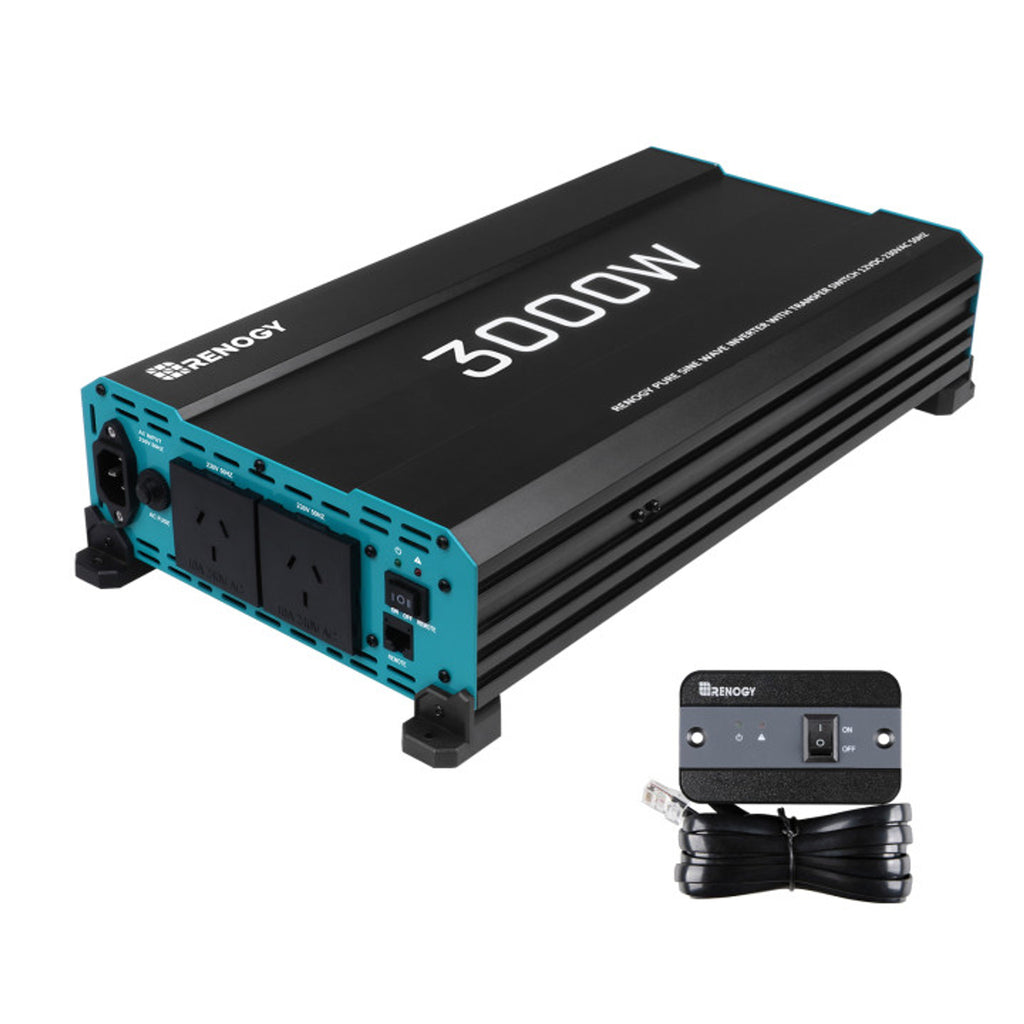

3000W 12V Pure Sine Wave Inverter
1 x
|
Inverter Cables
1 x
|
Inverter Remote Control
1 x
|
Specification
| 3000W 12V Pure Sine Wave Inverter | |
|---|---|
| Continuous Power: 3000W | Surge Power (Peak Power): 6000W |
| Input Voltage: 12VDC | Output Voltage: 220VAC±10 |
| Input Voltage Range: 11-16Vdc | Static Current: 1.5A |
| Output Frequency (Nominal): 50Hz±0.3 | Output Wave form: Pure Sine Wave |
| Low Voltage Shutdown: 10Vdc | Recover from low voltage protection |
| High Voltage Shutdown: 16.3Vdc | Battery supply & AC main transfer time within 50ms |
| Maximum Efficiency: 90% | Working Temperature: 0°C~40°C |
| Dimensions: 482*220*92mm | Weight: 6.4Kg |
| Certifications： | |
| CE | YES |
Warranty Information
| Inverters |
1-year material and workmanship warranty |
| Accessories | 1-year material warranty |
