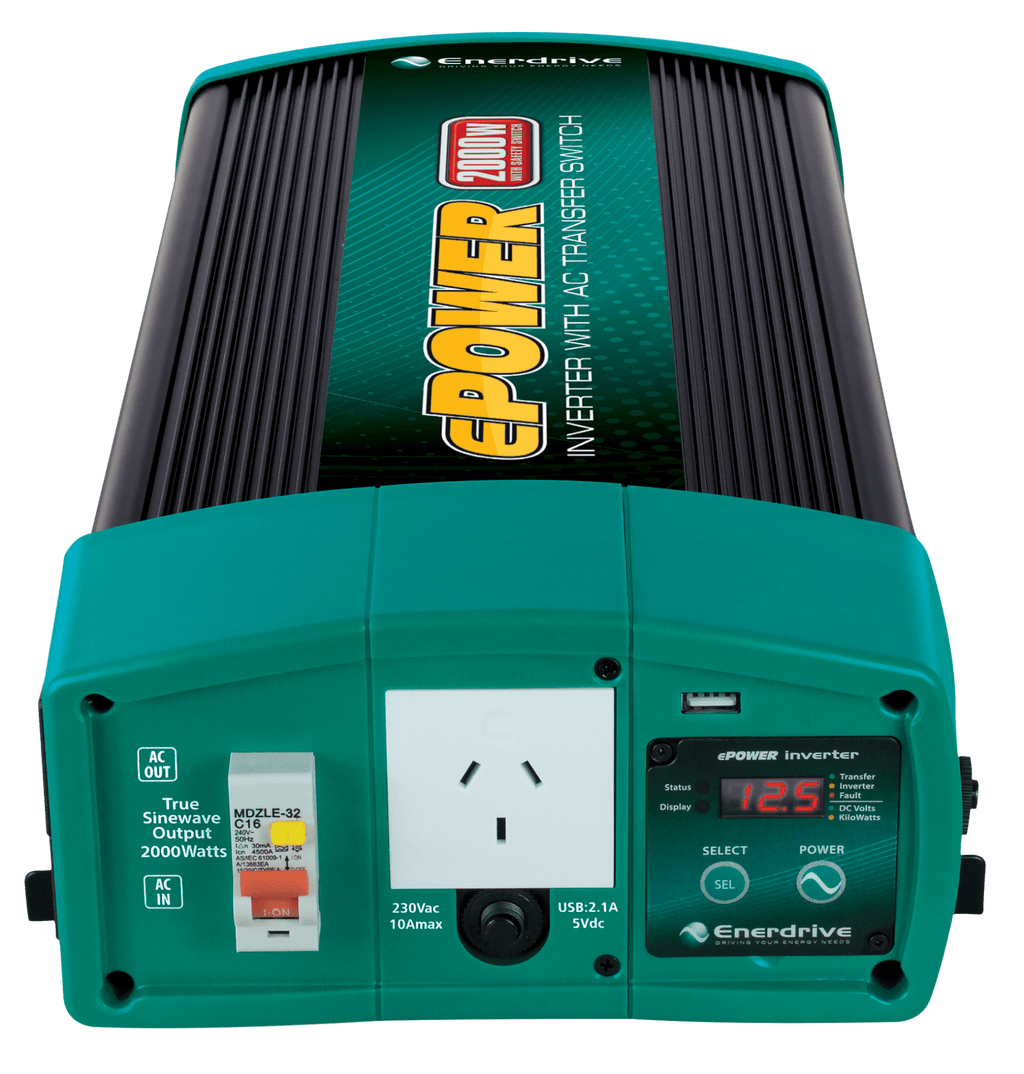

ePOWER 2000W 12V True Sine Wave Inverter with AC Transfer & Safety Switch P/N EN1120S-X
Features
ePOWER 2000W True Sine Wave Inverter with AC Transfer Switch & Safety Switch
The ePOWER 2000W Inverter with AC Transfer & Safety Switch is one in a family of affordable, high quality, professional level inverters by Enerdrive. By using the latest power conversion technology, ePOWER inverters deliver clean and energy efficient true sine wave AC power from your DC supply.
This ePOWER Inverter incorporates a 16A AC Transfer Switch which allows for seamless AC power transfer between Mains/Generator and Inverter. This helps to keep your appliances running with almost no break time on AC transfer and allows for a much simpler installation on-board.
Also included in the unit is a RCD Safety Switch. This switch monitors the flow of electricity through the inverter and detects any problems that may pose a risk to personal safety and switches the output power off within 0.03 of a second.
The ePOWER 2000W is built to operate basic equipment such as power tools, computers, microwave ovens, televisions and other appliances that use up to 2000W of power for operation. All Enerdrive ePOWER Inverters are covered by our extensive 5-Year warranty.
ePOWER Inverter Features:
- Seamless 16A AC Internal Transfer Switch
- AC RCD/Safety Switch with test button
- Removable LED Remote Control Display Panel
- Regulated Pure Sine Wave Output
- Silent Operation
- Compact Size for Easy Installation
- USB Port for charging USB devices
Specifications
True Sine Wave Inverter with AC Transfer Switch & Safety Switch
| Model – Description | EN1120S-X | EN1120S-X-24v | EN1226S-X |
|---|---|---|---|
| AC Output Power | 2000W | 2000W | 2600W |
| AC Output Current | 8.7A | 8.7A | 11.3A |
| AC Output Voltage | 230 Vac / 50 Hz | ||
| AC Output Waveform | Sinewave (<3% THD) | ||
| Nominal DC Input Voltage | 12.5 VDC | 24.5 VDC | 12.5 VDC |
| No Load battery draw | < 1.5 ADC | ||
| DC Input Voltage operating range | 10.5 – 15.5 VDC | 21.0 – 31.0 VDC | 10.5 – 15.5 VDC |
| Under Voltage Alarm | 11.0 / 12.1 VDC | 22.0 / 24.2 VDC | 11.0 / 12.1 VDC |
| Under Voltage Alarm Recovery | 11.3 / 12.3 VDC | 22.6 / 24.6 VDC | 11.3 / 12.3 VDC |
| Under Voltage Shutdown | 10.5 / 11.8 VDC | 21.0 / 23.6 VDC | 10.5 / 11.8 VDC |
| Under Voltage Shutdown Recovery | 12.0 / 12.6 VDC | 24.0 / 25.2 VDC | 12.0 / 12.6 VDC |
| Over Voltage Shutdown | 15.5 VDC | 31.0 VDC | 15.5 VDC |
| USB Port | 5V, 750 mA | ||
| AC Transfer Switch | |||
| Transfer Time | < 30 ms | ||
| Transfer Relay Rating | 16A (resistive load) | ||
| AC Input socket IEC-C20 | 16A max | ||
| AC Output socket IEC-C19 | 16A max | ||
| AC Output Front GPO | 10A max | ||
| Safety and Environmental | |||
| Conformance | All required Australian Standards , CE LVD: EN/IEC 62040-1, IEC61558-2-16 | ||
| EMI / EMC | CE EMC: EN/IEC 62040-2 category C1 | ||
| Agency Markings | RCM , CE | ||
| Operating Temperature | 0°C to 40°C | ||
| Storage Temperature | -20°C to 60°C | ||
| Relative Humidity | 5-90% non-condensing | ||
| Operating Altitude | Up to 3000 meters above sea level | ||
| Weights and Dimensions | |||
| Weight | 5.9 kg | 5.9 kg | 7.0 kg |
| Dimensions (W x L x H) | 435x230x115 mm | 435x230x115 mm | 560x230x115 mm |
| Warranty | 5 Years | ||
Note: Specifications subject to change without notice.
Estimate Run Time On Load
Following run times are estimates for reference, based on using different battery bank sizes. Actual run times may vary.
Important: Power Drain from DC Battery Bank.
Please note that there is a power drain of approx 700mA from the battery bank when the Inverter is running in AC By-Pass mode. In order to avoid draining down the battery bank, a battery charger with sufficient power is required to maintain the battery bank voltage.
| Estimate run time on different 12V Battery Bank Size | |||||
|---|---|---|---|---|---|
| AC Load | 60AH | 120AH | 180AH | 240AH | 300AH |
| 50 W | 11 hrs | 22 hrs | 33 hrs | 44 hrs | 55 hrs |
| 100 W | 5 hrs | 11.5 hrs | 17 hrs | 23 hrs | 29 hrs |
| 200 W | 2.5 hrs | 5 hrs | 8 hrs | 11 hrs | 13.5 hrs |
| 500 W | 49 mins | 2 hrs | 3 hrs | 4 hrs | 5 hrs |
| 1000 W | 15 mins | 49 mins | 1.5 hrs | 2 hrs | 2.5 hrs |
| 1500 W | 8 mins | 27 mins | 49 mins | 1 hrs | 1.5 hrs |
| 2000 W | N.R. | 15 min | 34 mins | 49 mins | 1 hrs |
| 2600 W | N.R. | 11 min | 25mins | 37 mins | 49 mins |
Note: Specifications subject to change without notice.
