Description
Features
160w Watt Mono-crystalline Folding Panel Kit (Im 8.9amps)
Enerdrive offers a great outdoor solution to keep your battery and 12 volt equipment going and going all year round in the sun.
Included in the kit is a 10amp Enerdrive Solar controller which is completely waterproof for your peace of mind if you do happen to leave the kit outside.

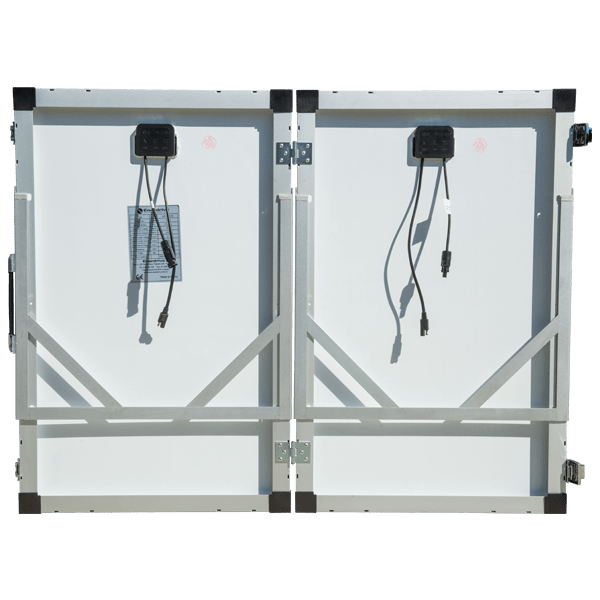

- Quality Mono-Crystalline solar panels with solid 35mm double channel aluminium frames
- Sturdy legs to provide you with the best angle for the panels to the sun
- 5 meters of easy plug and play battery leads
- A quality 10amp solar regulator with adjustable flooded or sealed type battery switch modes

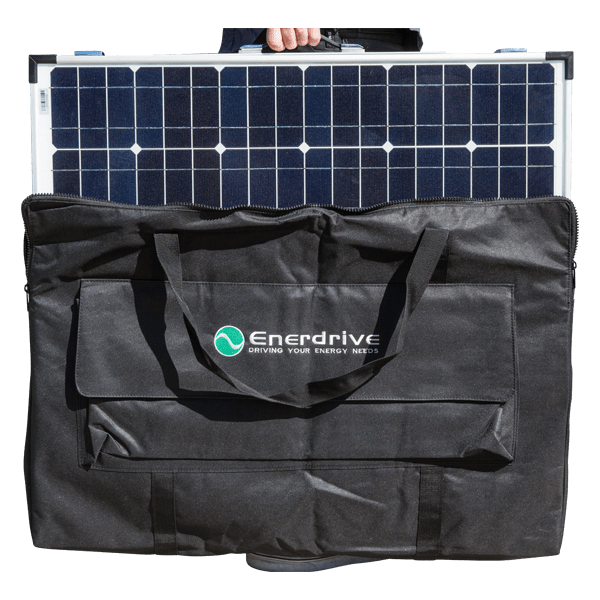

- A strong, durable canvas bag with carry pouch for all accessories
- Locally supported 2 year product warranty with spare parts on demand
Specifications
| Enerdrive Part Number | SPF-EN160W |
|---|---|
| Max Power Pm(W) | 160 |
| Power Tolerance % | ± 3% |
| Max Power Voltage Vm(V) | 18.60 |
| Max Power Current Im(A) | 8.61 |
| Open Circuit Voltage Voc(V) | 24.10 |
| Short Circuit Current Isc(A) | 7.78 |
| Max System Voltage (VDC) | 1000 |
| Dimensions (mm) Folded | 670(w) x 780(h) x 80(d) |
| Dimensions (mm) Open | 1350(w) x 780(h) x 40(d) |
| Weight (kg) | 24 |
| On an average day, you can expect approximately the following amperage into your battery: | |
| Average daily sun hours | 5.5hrs |
| Average daily current to battery | Approx 35 + amp hours |
| Anticipated run time for a typical 50 Litre portable camp fridge (assuming 50% depth of discharge to your 100 amp hour battery) |
Up to 3 days |
| Test Conditions | 1000W/m² , AM1.5 , 25°C |
